Prima VENTUS
Exposed extractor fans disrupt clean surfaces and collect dust over time. Prima VENTUS conceals the unit behind a flush, minimal cover, whilst maintaining airflow and preserving a seamless, easy to clean finish.
Read more Read less
Hygiene and Seamless Design
Without a protruding grille or surface-mounted housing, Prima VENTUS removes the dust trap that conventional extractor fans introduce into the bathroom. Every component is moisture resistant and engineered for the permanent humidity of a wet room environment. The cover face and internal housing clean in a single wipe with nothing more required.
How It Works
The cover is held in place by a concealed magnetic system, releasing with a simple pull for immediate access to the extractor unit behind. No tools, no fixings to undo, and no tiles to disturb. Routine maintenance or full unit replacement takes seconds and the cover clicks back into position magnetically, returning the wall to its finished state immediately.
The Integra Prima Ethos

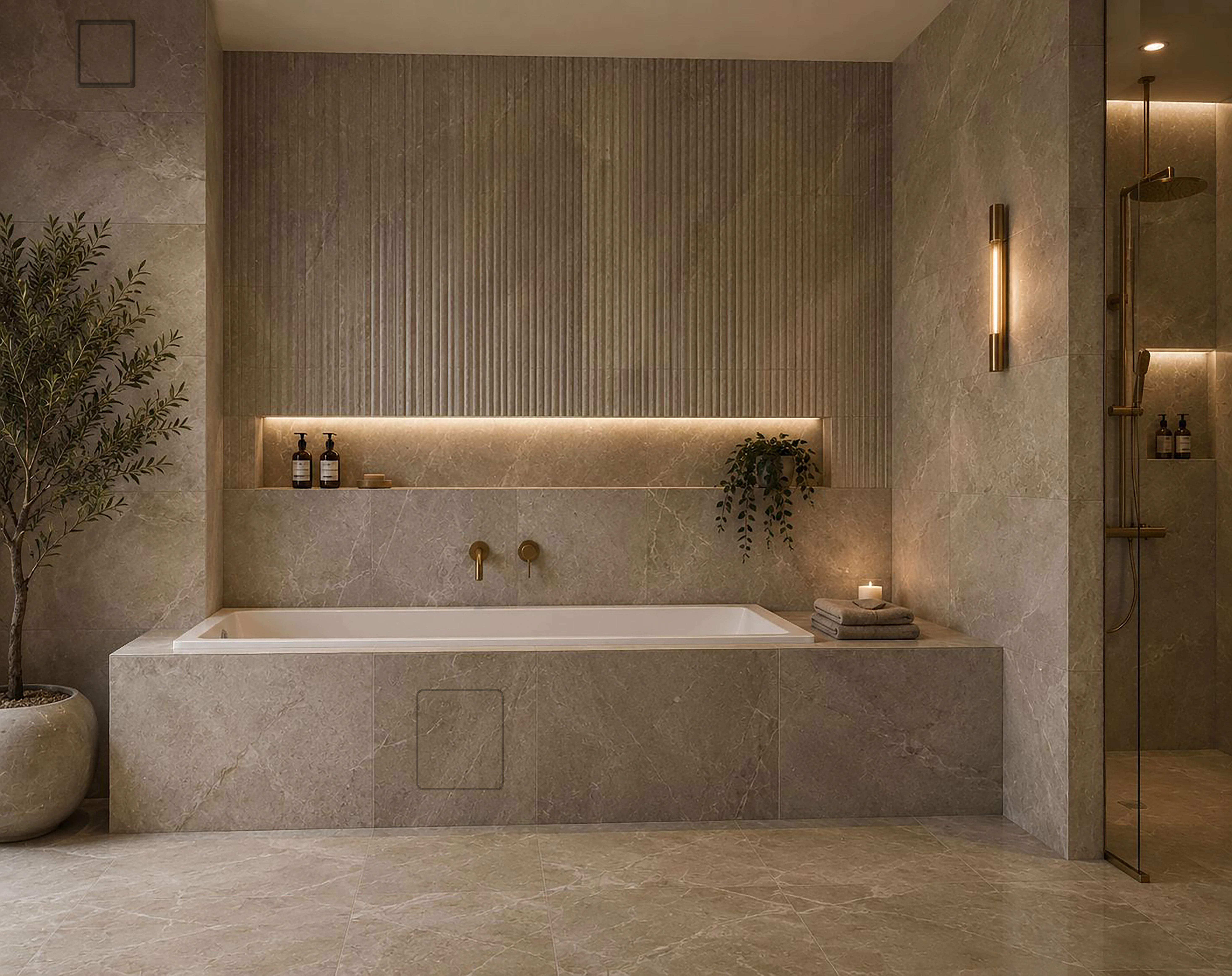

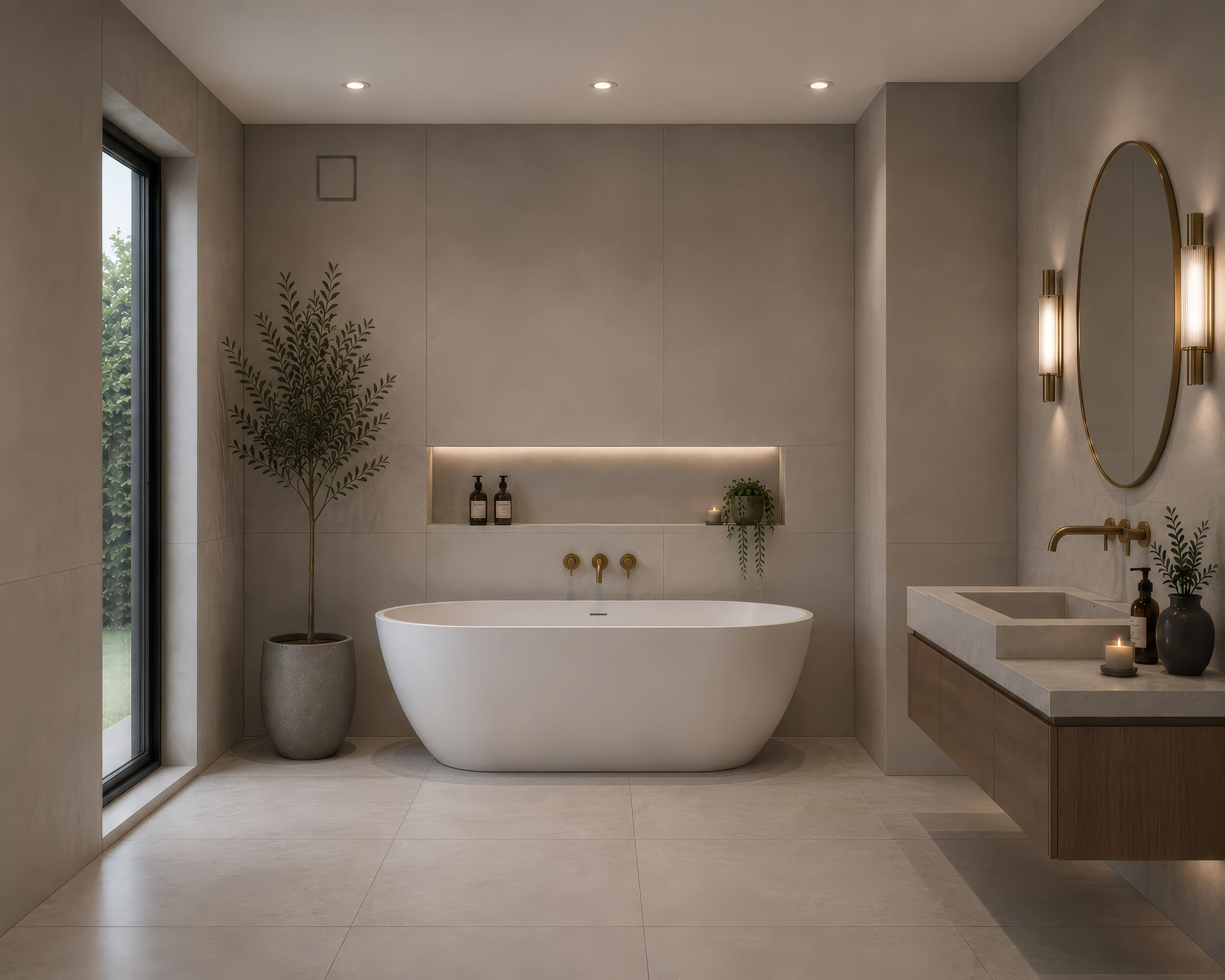

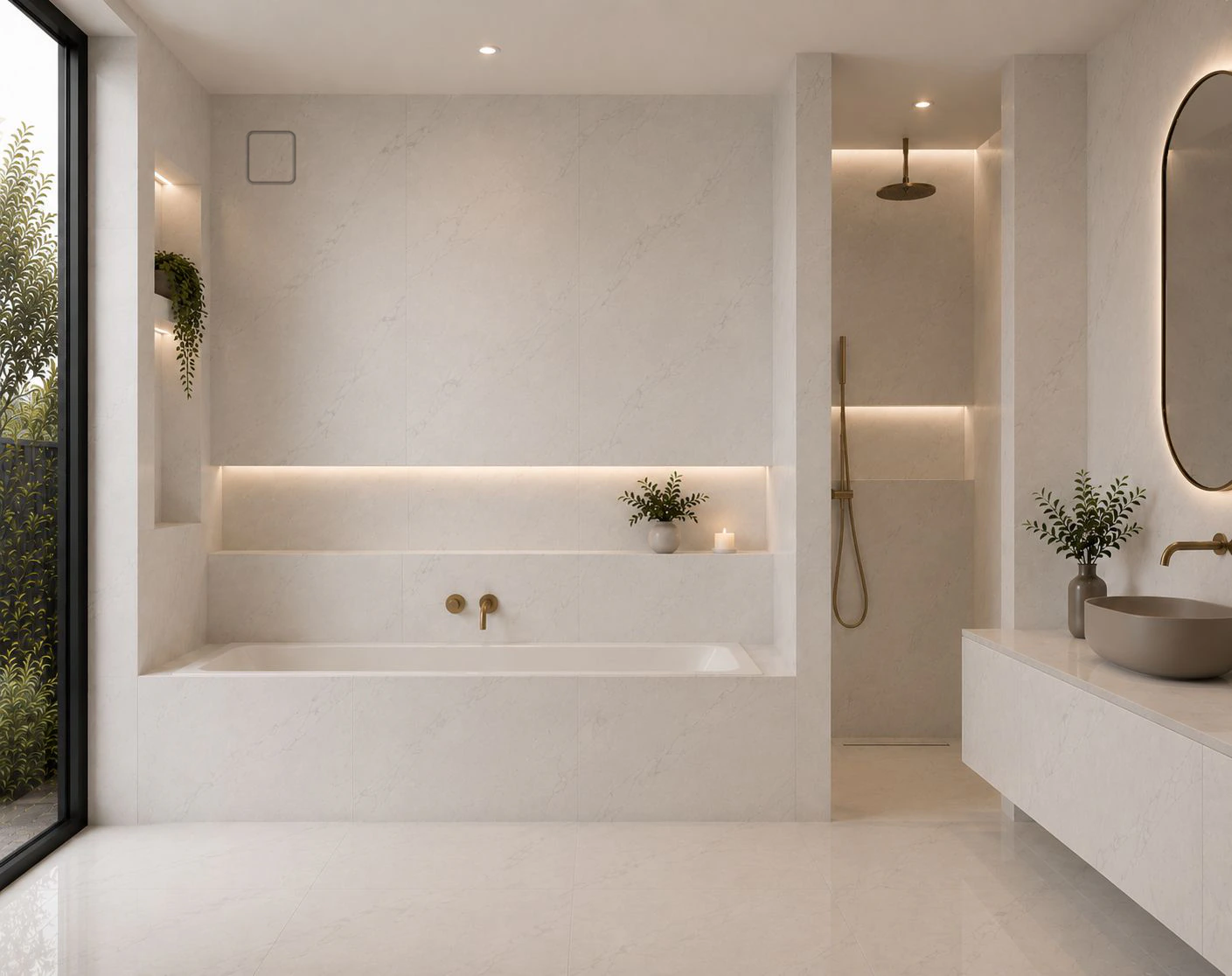

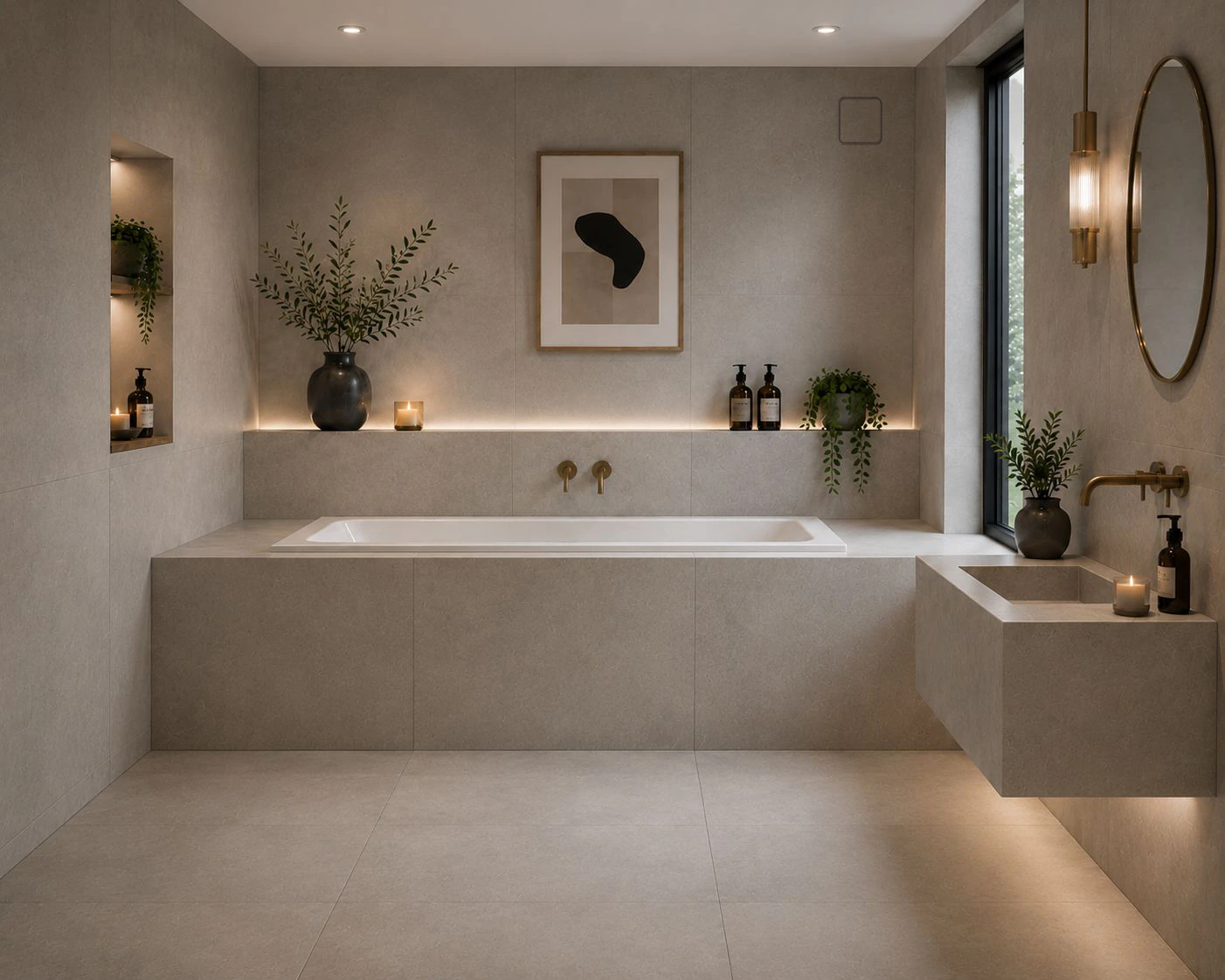

True to the Integra Prima ethos, the cover sits completely flush with the tile surface. No visible unit. No surface-mounted housing. No hardware interrupting the wall. Just a continuation of the tile with the function concealed behind it.
Variants and Colours

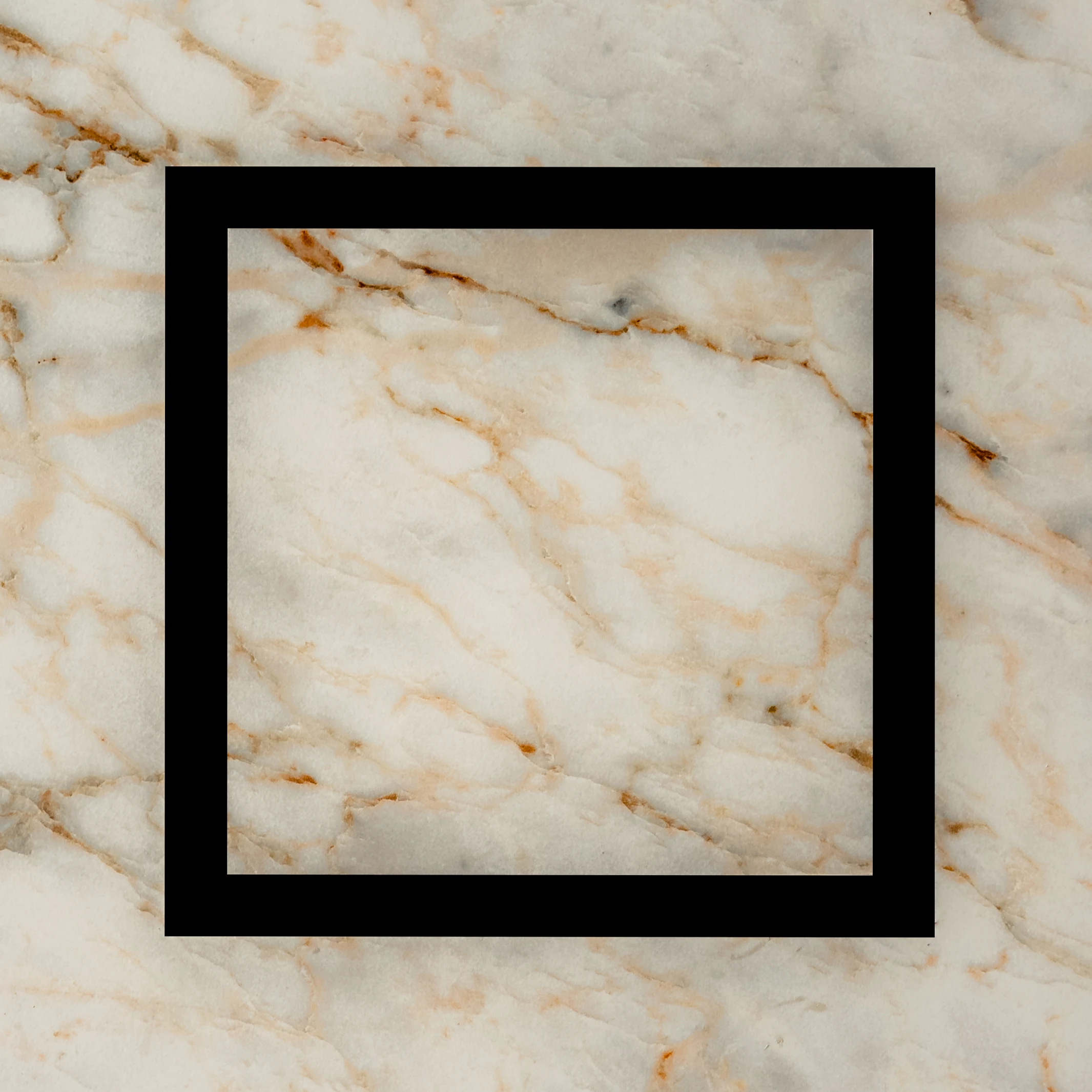

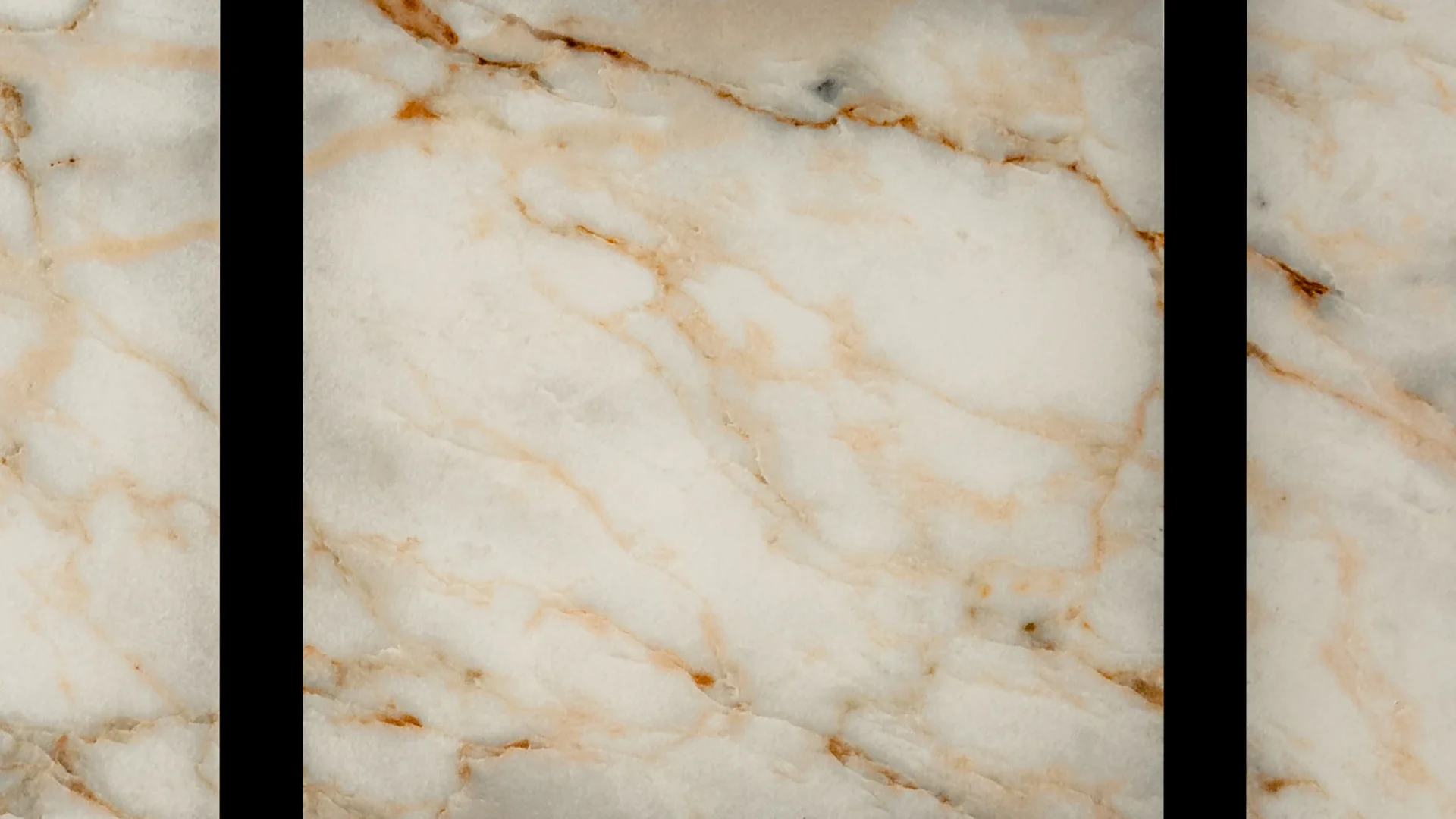

Prima VENTUS is available in two cover designs to suit different bathroom aesthetics. CURVA features softly rounded corners that complement warmer and more organic interiors. RECTA has clean angular corners suited to contemporary and minimal bathrooms where precise geometric lines define the space. Both deliver the same flush tile-integrated finish and identical airflow performance and the choice is purely one of design. One detail to consider at specification stage: the airflow passes through a visible gap at the perimeter of the cover face. This is a design element rather than a compromise. Prima VENTUS is available in a range of colours to complement your tile choice. Select the colour that best matches your bathroom before ordering.
- Maintains airflow without a bulky grille
- Keeps the wall surface visually quiet
- Ventus CURVA and Ventus RECTA on one product page
- Easy-clean face with fewer dust traps
- Available in Black, Grey, and White
- 10-year product warranty included
Technical Specifications
- Material
- High-grade PETG polymer
- Available types
- Curva (curved corners) - Recta (squared corners)
- Curva dimensions
- 210 x 210 mm
- Recta dimensions
- 210 x 210 mm
- Min. wall depth
- 50 mm
- Available duct sizes
- 80 mm - 100 mm - 125 mm
- Mounting system
- Magnetic - tool free removal for service and maintenance
- Enclosure
- Fully sealed against dust and external contaminants
- Colours
- White - Grey - Black
- DWG file
- Available upon request for waterjet cutting
- Installation
- Not suitable for installation after tiling.
- Warranty
- 10 years
Installation & Care
Prima VENTUS is intended for recessed installation behind a flush architectural cover, with Ventus CURVA and Ventus RECTA offering two visual front-face options. Final airflow, power, and service-clearance notes will be updated once the client uploads the technical pack.
