Prima FLUX

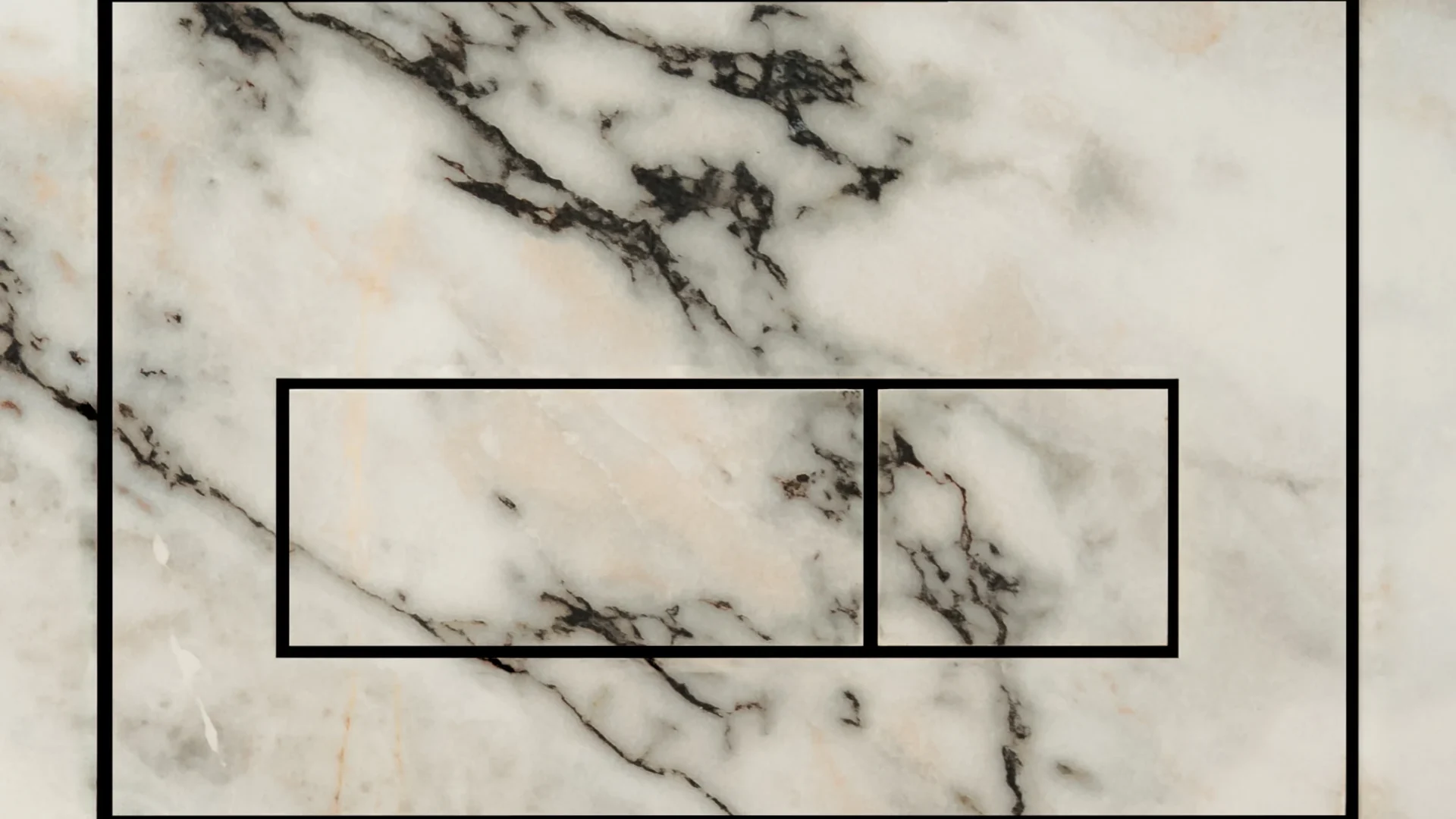

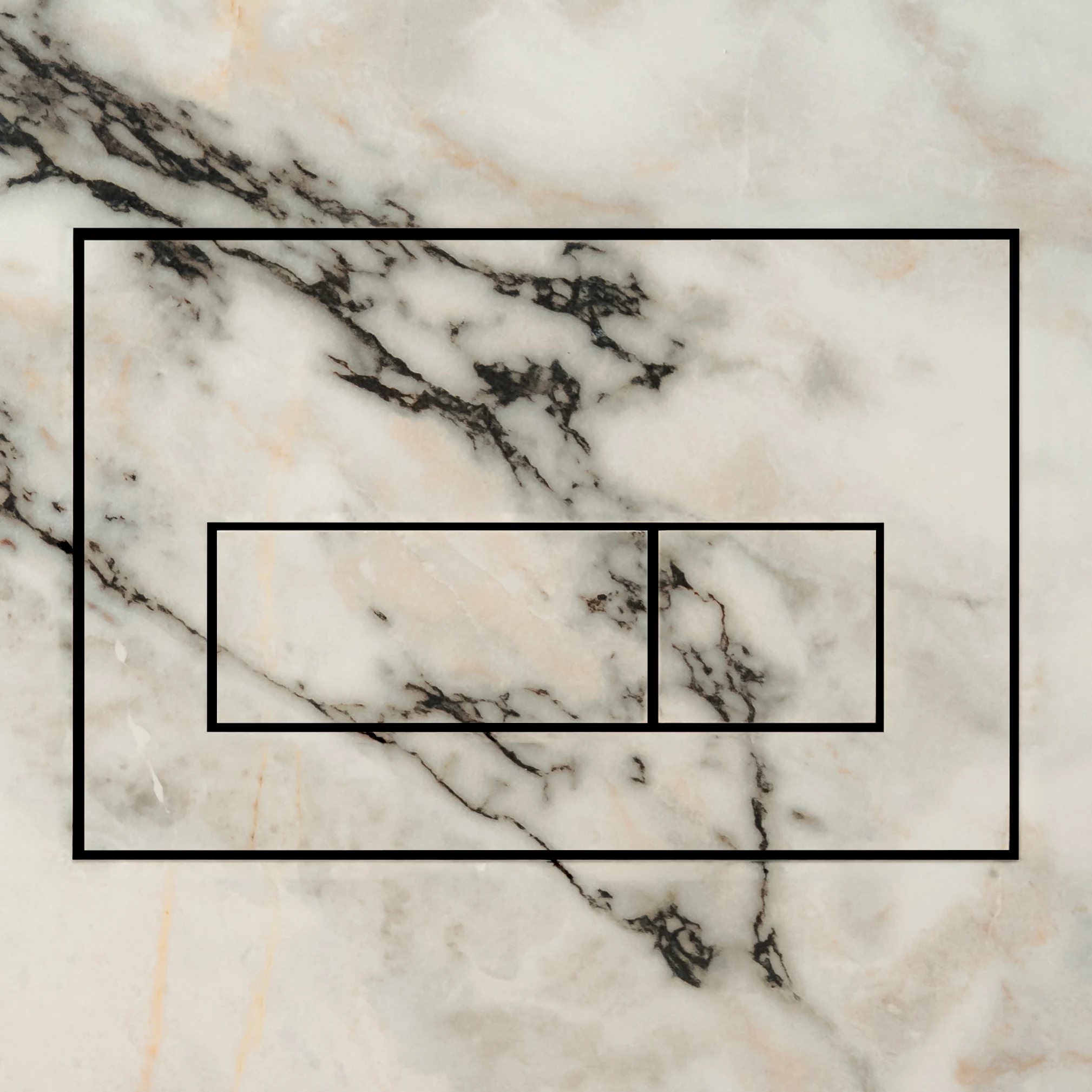

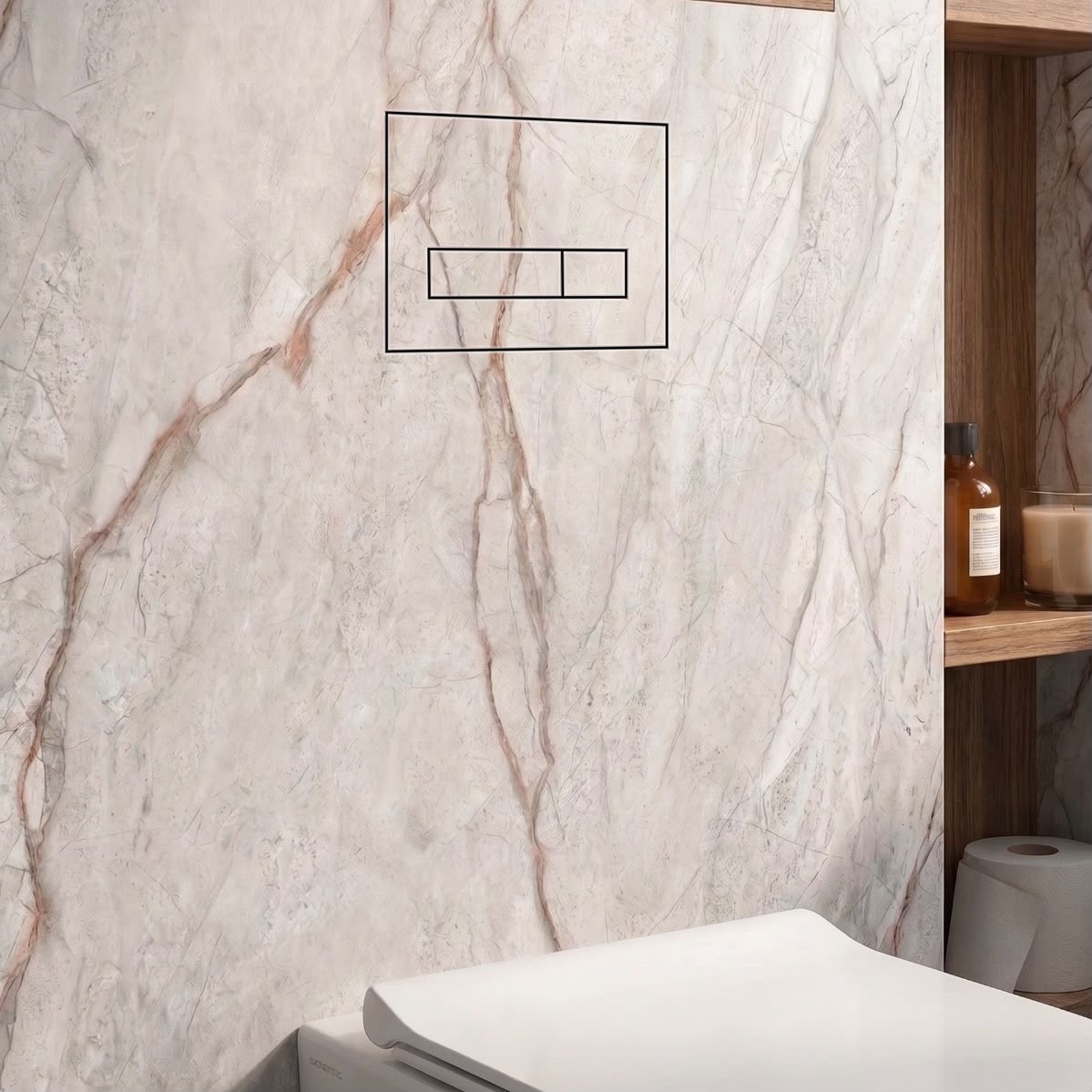

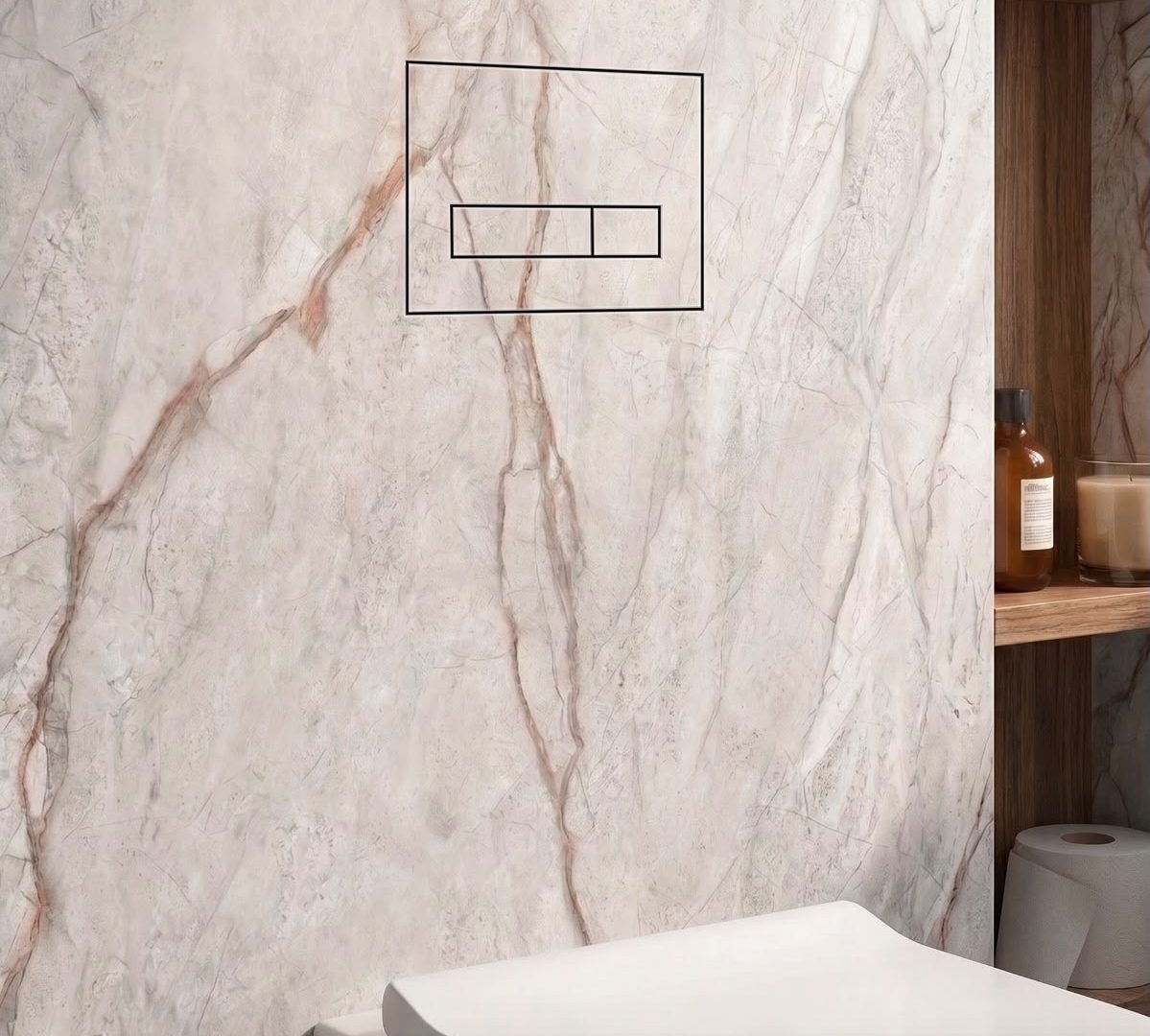

Traditional flush plates create visible breaks in the wall and introduce edges where dirt can accumulate. Prima FLUX integrates seamlessly into the surface, delivering a clean, flush finish that improves hygiene, safety, and long-term maintenance access.
Read more Read less
Hygiene and Seamless Design
Without exposed edges or surface-mounted hardware, Prima FLUX eliminates the areas where moisture, dust, and bacteria accumulate on conventional flush plates. Every component is moisture resistant and engineered for the permanent humidity of a wet room environment. The tile surface cleans in a single wipe with no edges to work around and no maintenance required beyond that.
How It Works
The flush mechanism operates with a simple push directly on the tile face. The actuator releases from the front without tools, giving immediate access to the cistern for servicing or replacement when needed. No tiles need to be removed and the wall returns to its finished state in seconds.
The Integra Prima Ethos
True to the Integra Prima ethos, nothing sits on the surface. No plate. No frame. No chrome. Just the tile, uninterrupted and exactly as it was designed to look.
Variants and Colours
Prima FLUX is available in two mounting systems to suit different wall builds. Flux Terra mounts via corner fixings and requires a minimum wall depth of 18 mm, making it ideal for standard bathroom renovations where space behind the wall is limited. Flux Orbis uses a fixed frame system requiring a minimum wall depth of 30 mm and is recommended for new builds and full renovations where wall depth allows. One detail worth considering at specification stage: when the flush is pressed, a small area of the plate face becomes briefly visible. This moment of colour is part of the design rather than a compromise. Prima FLUX is available in a range of finishes to complement your tile choice. Select the finish that best matches the tile used in your bathroom before ordering.
- Flush, wipe-clean wall finish
- Improves hygiene around the WC zone
- Flux Terra and Flux Orbis on one product page
- Available in Black, Grey, and White
- 10-year product warranty included
Technical Specifications
- Material
- High-grade PETG polymer
- Available types
- Flux Terra (with corners) - Flux Orbis (with frame)
- Flux Terra plate dimensions
- 280 x 200 mm
- Flux Orbis plate dimensions
- 240 x 160 mm
- Min. wall depth - Flux Terra
- 18 mm
- Min. wall depth - Flux Orbis
- 30 mm
- Colours
- White - Grey - Black
- Compatibility
- Geberit system: Sigma, Delta and Omega series. Jomo, Alca-drain, Tece, Grohe, Villeroy and Boch, Vigour, Roca, Duravit, Viega vising, Kielle, Laufen.
- DWG file
- Available upon request for waterjet cutting
- Installation
- Can be installed before or after the tiling.
- Warranty
- 10 years
Installation & Care
Prima FLUX is designed to align with the finished tile plane around a concealed cistern. Flux Terra and Flux Orbis share the same concealed-wall concept, with final fixing tolerances, service access notes, and compatibility details to be replaced by the client technical sheet as soon as it lands.
